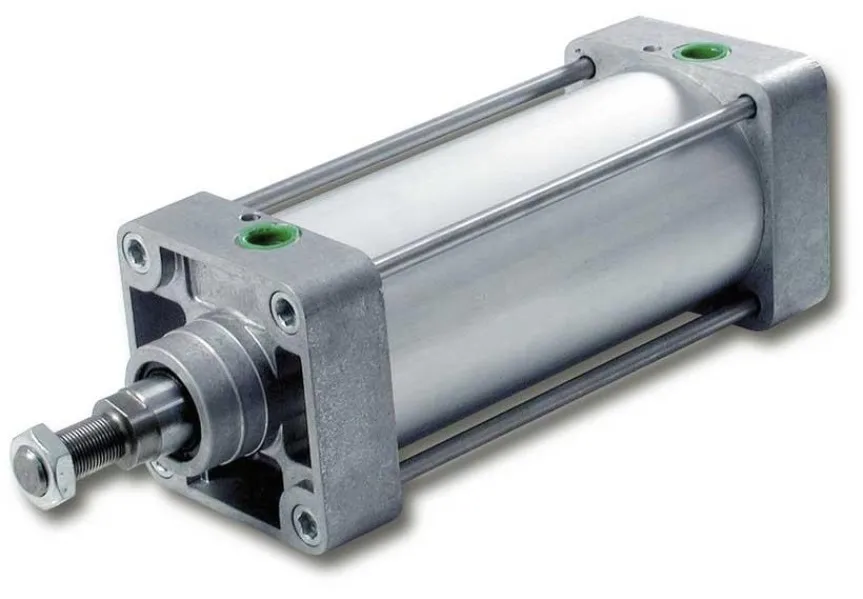

Pneumatic Cylinders are mechanical actuators that convert compressed air energy into linear mechanical motion. They are widely used in industrial automation, manufacturing machinery, packaging equipment, material handling systems, assembly lines, and process automation.
Also known as air cylinders, pneumatic cylinders provide reliable linear movement for pushing, pulling, lifting, clamping, positioning, and other automated operations. They are available in different bore sizes, stroke lengths, mounting arrangements, and configurations to suit specific machine requirements.
Key Features
- Reliable pneumatic linear motion
- Compact and robust construction
- Available in different bore sizes
- Multiple stroke lengths
- Single-acting and double-acting configurations
- Various mounting options
- Suitable for automated machinery
- Easy integration with pneumatic control systems
- Suitable for continuous industrial applications
Types of Pneumatic Cylinders
1. Single Acting Pneumatic Cylinder
Uses compressed air for movement in one direction and a spring or external force for the return stroke.
2. Double Acting Pneumatic Cylinder
Uses compressed air for both extension and retraction, providing controlled movement in both directions.
3. Compact Pneumatic Cylinder
Designed for applications where installation space is limited.
4. Rodless Pneumatic Cylinder
Provides linear motion without a conventional external piston rod and can be useful where longer strokes or space efficiency are required.
5. Guided Pneumatic Cylinder
Designed with additional guidance to improve stability and resistance to side loads.
Applications
- Industrial automation
- Packaging machinery
- Assembly machines
- Material handling equipment
- Pick-and-place systems
- Clamping and positioning systems
- Manufacturing machinery
- Conveyor systems
- Textile machinery
- Food-processing equipment
- Robotic automation
- Process-control equipment
